24V DC Mitsubishi HMI 10 Inch GS2110-WTBD TFT Color LCD Touch Panel

Ask Lasest Price
Brand Name :	Mitsubishi
Model Number :	GS2110-WTBD
Supply Ability :	10pc/per week
Price :	$120-$800
Payment Terms :	T/T, western union

Add to Cart

Product Details
Company Profile

24V DC Mitsubishi HMI 10 Inch GS2110-WTBD TFT Color LCD Touch Panel

Original new 10 inch Mitsubishi GS2110-WTBD HMI touch panel

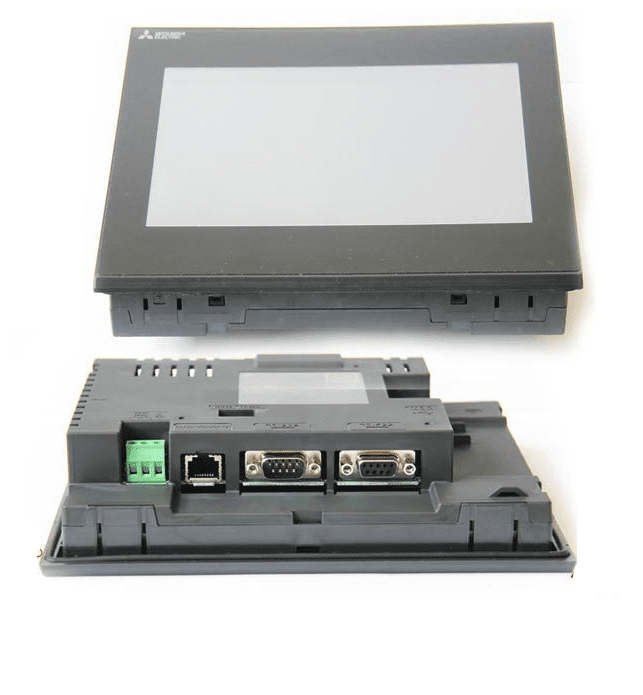

10 Inch Hmi Mitsubishi Touch Screen Gs2110-wtbd With Good Price - Buy Mitsubishi Human-machine Interfaces,10 Inch Plc Hmi,Mitsubishi Touch Screens Gs2110-wtbd With Good Price Product on Alibaba.com

Specification

7″ Mitsubishi Touch screen HMIs GS21 Simple	GS2110-WTBD		GS2107-WTBD
Display Device	TFT color LCD
Screen Size	10″		7″
Resolution	800 x 480 dots
Display Size(W x H) mm (inch)	222 x 132.5 (8.74 x 5.22) (Horizontal format)		154 x 85.9 (6.06 x 3.38) (Horizontal format)
Number of Characters	16-dot standard font: 50 chars. x 30 lines (2-byte) (Horizontal format)
Display Color	65536 colors
Backlight	LED (not replaceable) Backlight off/screen saving time can be set
Touch Panel Type	Analog resistive film
Key Size	Minimum 2 x 2 dots (per key)
Simultaneous Press	Simultaneous press prohibited (only 1 point can be pressed)
Life	1 million times (operating force 0.98N or less)
Memory C Drive	Flash memory (internal) (9MB), for storing project data, OS Life (No. of writings) 100000 times
Built-in Interface RS-422	RS-422, 1chTransmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-Sub 9pin (female)Application: For communication with controllers Terminating resister: 330 Ω fixed
RS-232	RS-232, 1chTransmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-Sub 9pin (male)Application: For communication with controllers and a barcode readerFor connecting a personal computer (Project data read/write, FA transparent function)
Ethernet	Data transfer method: 100BASE-TX, 10BASE-T, 1ch Connector shape: RJ-45 (modular jack) Application: For communication with controllersFor connecting a personal computer (Project data read/write, FA transparent function)
USB	USB (Full Speed 12Mbps), 1ch Connector shape: Mini-BApplication: For connecting a personal computer (Project data read/write, FA transparent function)
SD Card	SD compliant, 1chSupported memory card: SDHC memory card, SD memory card Application: Project data read/write, logging data save
Buzzer Output	Single tone (LONG/SHORT/OFF adjustable)
Protective Structure	IP65F (Only the front part of the panel)
Ext. Dimensions (W x H x D) mm (inch)	272 x 214 x 56 (10.71 x 8.43 x 2.21)		206 x 155 x 50 (8.11 x 6.11 x 1.97)
Weight (Excl. Mounting Brackets) (kg)	1.3		0.9
Compatible Software Package	GT Designer3 Version1.105K or later (*1) (English Version)
Mitsubishi touch screen HMI GS21 Power Supply	GS2110-WTBD	GS2107-WTBD
Power Supply Voltage	24VDC (+10%, -15%), ripple voltage 200mV or less
Power Consumption	7.6W (317mA/24V) or less	6.5W (271mA/24V) or less
With Backlight Off	3.8W (158mA/24V) or less	3.8W (158mA/24V) or less
Inrush Current	17A or less (6ms, ambient temperature 25, maximum load)
Allowable Momentary Power Failure Time	Within 5ms
Noise Immunity	Conforms to IEC61000-4-4, 2kV (power supply line)
Withstand Voltage	350VAC for 1 minute between power supply and ground
Insulation Resistance	10MΩ or higher with an insulation resistance tester (500VDC between power supply terminal and ground)
