PFXGM4301TAD Proface HMI with 5.7 Inch TFT Color LCD Display

Ask Lasest Price
Brand Name :	Proface
Model Number :	PFXGM4301TAD
Price :	USD100-5000/pc
Payment Terms :	T/T, western union
Supply Ability :	10pc/per week
Delivery Time :	3-5working days
MOQ :	1

Add to Cart

Product Details
Company Profile

PFXGM4301TAD Proface HMI with 5.7 Inch TFT Color LCD Display

PFXGM4301TAD Proface HMI 7 Inch LED Backlight Hot Sale Touch Screen

Standard product information

Family

HMI

Series

GP4000M Series

Size

Model

PFXGM4301TAD

Global Code

PFXGM4301TAD

Product Features

Modular 5" DC Analog

Repair Status

- (Maintenance service is not available. Replace with a new unit under warranty.)

Display specifications

Display type

TFT Color LCD

Display size

5.7"

Resolution

320 x 240 pixels (QVGA)

Effective display area

W115.2 x H86.4 mm [W4.54 x H3.40 in.]

Display colors

65,536 colors

Backlight

White LED (Not user replaceable. When replacement is required, contact your local distributor.)

Backlight service life

50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)

Brightness control

16 Levels (Adjusted with touch panel or software)

Touch panel type

Resistive Film (analog)

Touch panel lifetime

1,000,000 times or more

Language fonts

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )

Character sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

Font sizes

Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1

8 x 8 dots

40 char. x 30 rows

8 x 16 dots

40 char. x 15 rows

16 x 16 dots

20 char. x 15 rows

32 x 32 dots

10 char. x 7 rows

1Other font sizes can be set up with the Editor software.

Electrical specifications

Rated input voltage

24 Vdc

Input voltage limits

20.4 to 28.8 Vdc

Allowable voltage drop

7 ms or less

Power consumption

6.8 W or less

In-rush current

30 A or less

Noise immunity

IEC61000-4-4, 2kV Power port, 1kV Signal ports

Voltage endurance

1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)

Insulation resistance

500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

Environmental specifications

International safety standards

Surrounding air temperature

0 to 50 °C [32 to 122 °F]*2

Storage temperature

-20 to +60 °C [-4 to 140 °F]

Ambient humidity

85 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)

Storage humidity

10% to 90% RH (Non condensing, wet bulb temperature 39 °C [102.2 °F] or less)

Dust

0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)

Pollution degree

For use in Pollution Degree 2 environment

Corrosive gases

Free of corrosive gases

Air pressure (altitude range)

800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)

Vibration resistance

IEC/EN 61131-2 compliant, 5 to 9 Hz single amplitude 3.5 mm [0.14 in.]

Electrostatic discharge immunity

IEC61000-4-2, 6 kV direct contact, 8 kV air contact

Drop resistance

IEC/EN 61131-2 compliant, 147 m/s2, x,y,z 3 directions

2When using in an environment where the temperature becomes or exceeds 40 °C for an extended period of time, the screen contrast level may decrease from its original level of brightness.

Memory

Application memory

When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 8MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: None
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: No*3

Backup memory

When using GP-Pro EX:
- Screen Area: nvSRAM 128KB
- Variable Area: None

Battery: None*4

Clock accuracy

Uses the clock of an external device*5

3Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.

4Application memory can provide 128KB for Data Backup. For further information, please refer to the GP-Pro EX reference manual.

5Set up the “Clock Updates“ feature with the Editor software. Please refer to the GP-Pro EX reference manual “Common” - “Clock Update Settings” for details.

Interface specifications

Serial (COM1)

Asynchronous Transmission: RS-232C / 422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)

USB (Type A)

Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Communication distance: 3 m [9.84 ft.] or less

USB (mini-B)

Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less

Ethernet

IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1

Structural specifications

Grounding

Functional grounding: Grounding resistance of 100 Ω, 2 mm2 (AWG 14) or thicker wire, or your country’s applicable standard (same for FG and SG terminals).

Cooling method

Natural air circulation

Structure

NEMA#250 TYPE 4X (indoor, installed in an enclosure)
Display module: IP65F
Rear module: IP20

Weight

0.62 kg [1.37 lb] or less

Dimensions

External dimensions

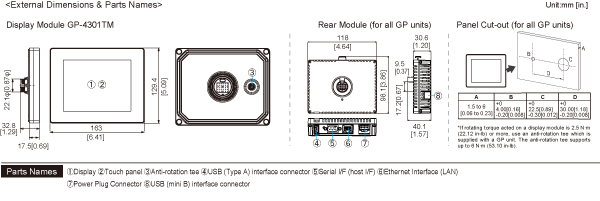

External Dimensions / Interfaces / Panel Cut-out

Zoom(link is external)
