    PFXGP4501TAA Proface Hot Sake HMI 7 Inch LED Backlight Touch Screen

    Ask Lasest Price
    Brand Name : Proface
    Model Number : PFXGP4501TAA
    Price : USD100-5000/pc
    Payment Terms : T/T, western union
    Supply Ability : 10pc/per week
    Delivery Time : 3-5working days
    MOQ : 1
    • Product Details
    • Company Profile

    PFXGP4501TAA Proface Hot Sake HMI 7 Inch LED Backlight Touch Screen

    PFXGP4501TAA
    Standard product information
    Family
    HMI
    Series
    GP4000 Series
    Size
    10"
    Model
    PFXGP4501TAA
    Global Code
    PFXGP4501TAA
    Product Features
    10" AC Analog
    Repair Status
    ✔ (Maintenance service is available, able to be maintained.)
    Display specifications
    Display type
    TFT Color LCD
    Display size
    10.4"
    Resolution
    640 x 480 pixels (VGA)
    Effective display area
    W211.2 x H158.4 mm [W8.31 x H6.24 in.]
    Display colors
    65,536 colors (No blink) / 16,384 colors (Blink)
    Backlight
    White LED (Not user replaceable. When replacement is required, contact your local distributor.)
    Backlight service life
    50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)
    Brightness control
    16 Levels (Adjusted with touch panel or software)
    Touch panel type
    Resistive Film (analog)
    Touch panel resolution
    1,024 x 1,024
    Touch panel lifetime
    1,000,000 times or more
    Language fonts
    Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )
    Character sizes
    Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
    Font sizes
    Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1
    8 x 8 dots
    80 char. x 60 rows
    8 x 16 dots
    80 char. x 30 rows
    16 x 16 dots
    40 char. x 30 rows
    32 x 32 dots
    20 char. x 15 rows

    1Other font sizes can be set up with the Editor software.

    Electrical specifications
    Rated input voltage
    100 to 240 Vac
    Input voltage limits
    85 to 264 Vac
    Rated frequency
    50 / 60 Hz
    Rated frequency range
    47 to 63 Hz
    Allowable voltage drop
    1 cycle or less (Voltage drop interval must be 1 second or more.)
    Power consumption
    100 Vac: 44 VA or less, 240 Vac: 58 VA or less
    In-rush current
    30 A or less
    Noise immunity
    Noise Voltage : 1,500 Vp-p
    Pulse Duration : 1 µs
    Rise Time : 1 ns
    (via noise simulator)
    Voltage endurance
    1,500 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
    Insulation resistance
    500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
    Environmental specifications
    International safety standards
    Surrounding air temperature
    0 to 55 °C [32 to 131 °F]
    Storage temperature
    -20 to +60 °C [-4 to 140 °F]
    Ambient humidity
    10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
    Storage humidity
    10 to 90 % RH (Wet bulb temperature: 39 °C [102.2 °F] max. - no condensation)
    Dust
    0.1 mg/m3 (10-7 oz/ft3) or less (non-conductive levels)
    Pollution degree
    For use in Pollution Degree 2 environment
    Corrosive gases
    Free of corrosive gases
    Air pressure (altitude range)
    800 to 1,114 hPa (2,000 m [6,561 ft.] above sea level or less)
    Vibration resistance
    IEC/EN 61131-2 compliant
    5 to 9 Hz single amplitude 3.5 mm [0.14 in.]
    9 to 150 Hz fixed acceleration: 9.8 m/s2
    X, Y, Z directions for 10 cycles (approx. 100 min.)
    Concussion resistance
    IEC/EN 61131-2 compliant 147 m/s2, X, Y, Z directions for 3 times
    Electrostatic discharge immunity
    Contact Discharge Method: 6 kV (IEC/EN61000-4-2 Level 3)
    Memory
    Application memory
    When using GP-Pro EX:
    - Media: FLASH EPROM
    - Screen Area: 32MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
    - User Font Area: 8MB
    - Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
    - Free Space: None

    Removable System: No
    Backup memory
    When using GP-Pro EX:
    - Screen Area: SRAM 320KB
    - Variable Area: SRAM 64KB

    Battery: Replaceable battery / Primary battery for clock data backup
    Clock accuracy
    ±65 sec./month (deviation at room temperature and power is OFF)*2

    2Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.

    Interface specifications
    Serial (COM1)
    Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)
    Serial (COM2)
    Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)
    USB (Type A)
    Conforms to USB 2.0 (Type A) x 1
    Power supply voltage: 5 Vdc ±5 %
    Output Current: 500 mA or less
    Communication distance: 5 m [16.4 ft.] or less
    USB (mini-B)
    Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less
    Ethernet
    IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1
    SD card
    SD Card Slot x 1
    Structural specifications
    Grounding
    Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)
    Cooling method
    Natural air circulation
    Structure
    IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*3
    External dimensions
    W272.5 x H214.5 x D57 mm [W10.73 x H8.45 x D2.25 in.]
    Panel cut-out dimensions
    W259 x H201 mm [W10.19 x H7.91 in.]
    Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*4
    Weight
    2 kg [4.41 lb] or less

    3The front face of this product, installed in a solid panel, has been tested using conditions equivalent to the standards shown in the specification.

    4For dimensional tolerance, everything +1/-0 mm [+0.04/-0 in.] and R in angle are below R3 [R0.12 in.]. Even if the installation wall thickness is within the recommended range for the "Panel Cut Dimensions", depending on wall's material, size, and installation location of GP unit and other devices, the installation wall could warp. To prevent warping, the installation surface may need to be strengthened.

    Dimensions

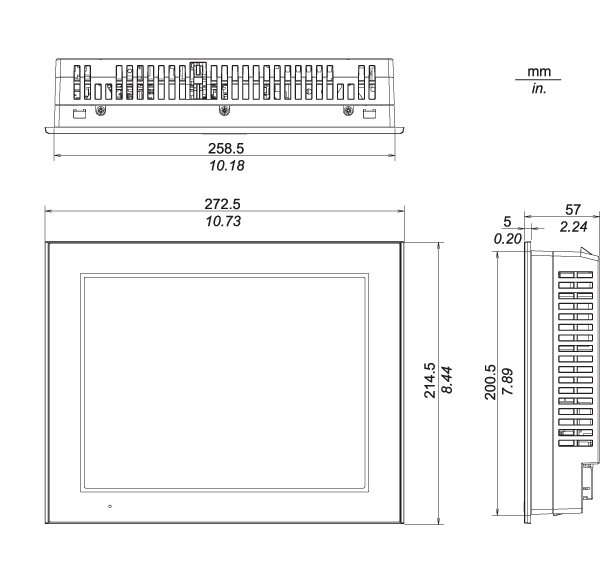

    External dimensions
    Panel cut-out dimensions
    External dimensions with cable
