NX-ID5442 16 Digital Inputs Omron Industrial Programmable Logic Controllers

NX-series digital input unit for general purpose use to High-speed synchronous control.16 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide.

• High-speed I/O refreshing is possible by connecting with the NX-series EtherCAT Coupler
• I/O refreshing can be synchronized with the control cycle of the Controller(Synchronous refreshing)
• ON/OFF response time of the high-speed model is 100ns maximum
• Screwless terminal block is detachable for easy commissioning and maintenance.
• Screwless clamp terminal block and connector types are significantly reduces wiring work
• Up to 16 digital inputs in a space-saving 12 mm width. (Connector Types 30 mm width)

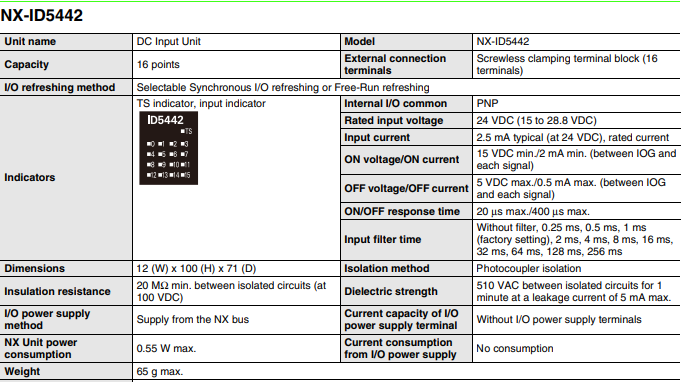

Electrical and Mechanical Specifications

I/O system	NX I/O Bus
Type of module	Digital I/O
Number of digital inputs	16
Digital input type	PNP
Permitted voltage at input	15-28.8 V
OFF/ON delay	0.02-0.4 ms
Number of digital outputs	0
Digital output type	None
Short-circuit protected outputs	x
Connection method	1-wire
Signal processing	Free running, Standard speed, Synchronous
IO link master	x
I/O connection type	Push-in
Number of I/O connectors	1
Detachable I/O connector	√
Suitable for safety functions	x
SIL according to IEC 61508	None
Communication port(s)	None
Number of IOV (V+) terminals	0
Number of IOG (V-) terminals	0
Number of COM terminals	0
Degree of protection (IP)	IP20
Height	100 mm
Width	12 mm
Depth	71 mm
Weight	65 g

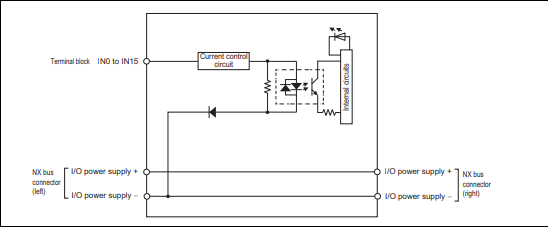

Circult layout

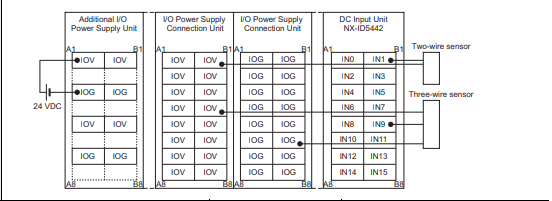

Terminal connection dlagram
