NX-EC0122 NX I/O Series Omron Industrial Programmable Logic Controllers

NX-EC0122 read position information from incremental encoders, synchronized with the control cycle and the EtherCAT distributed clock.

• 1 x Incremental Encoder PNP Input
• Phases A and B: Single-phase 500 kHz (phase difference pulse Input x4: 125 kHz)
• Phase Z: 125 kHz
• screwless push-in connector
• 12 mm wide

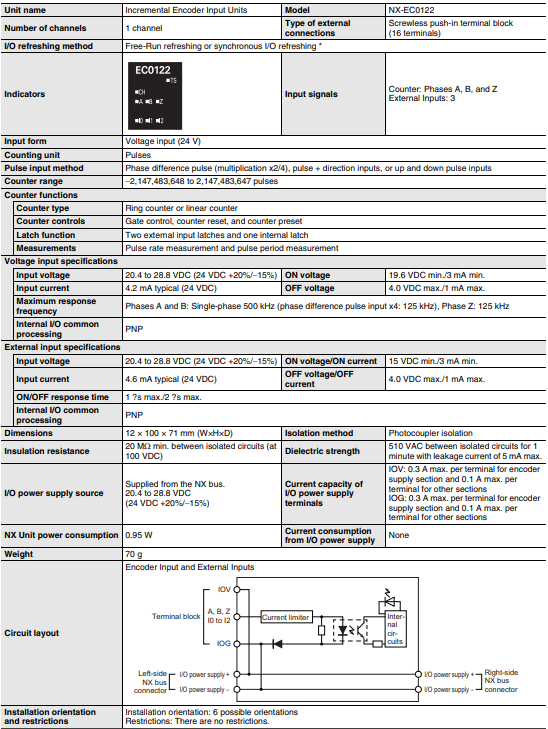

Specifications

I/O system	NX I/O Bus
Type of module	Encoder input
Digital input type	Incremental encoder, PNP
Digital output type	None
Signal processing	Free running, Synchronous, Task period prioritized
Number of encoder input channels	1
Max. encoder input frequency	500 kHz
Number of pulse output channels	0
Max. pulse output frequency	0 kHz
IO link master	x
I/O connection type	Push-in
Number of I/O connectors	1
Detachable I/O connector	√
Suitable for safety functions	x
SIL according to IEC 61508	None
Number of IOV (V+) terminals	4
Number of IOG (V-) terminals	4
Degree of protection (IP)	IP20
Height	100 mm
Width	12 mm
Depth	71 mm
Weight	70 g

Incremental Encoder Input Units 1 channel NX-EC0122

Features

• Open collector output type and line driver output type Incremental Encoders can be connected.

• Free-Run refreshing or Synchronous I/O refreshing can be selected for refreshing with the NX-series EtherCAT Coupler.

• When the MC Function Modules of the NJ-series Machine Automation Controller are used, the encoder input can be used for motion control instructions as an “axis”.

• Latch function (1 internal signal and 2 input signals from external devices).

• Pulse Period Measurement.

• 32 bit counters (80000000 to 7FFFFFFF HEX).

• Maximum counting rate: 4 MHz (Line receiver: 4 MHz, Open collector: 500 kHz).

• Input edge time stamps.

• The maximum and minimum counter values can be set.

System Configuration

International Standards
