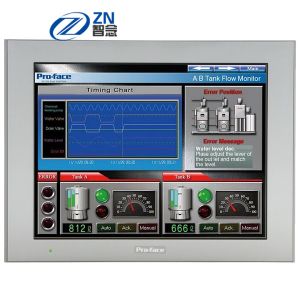

PFXGP4601TAD 12 Inch Panel Display Controller Proface HMI GP4000 Series

Ask Lasest Price
Brand Name :	Proface
Model Number :	PFXGP4501TAD
Price :	$150-$2000
Payment Terms :	T/T, western union
Supply Ability :	10pc/per week
Delivery Time :	3-5working days

Add to Cart

Product Details
Company Profile

PFXGP4601TAD 12 Inch Panel Display Controller Proface HMI GP4000 Series

Display specifications

Display type

TFT Color LCD

Display size

12.1"

Resolution

800 x 600 pixels (SVGA)

Effective display area

W246.0 x H184.5 mm [W9.69 x H7.26 in.]

Display colors

65,536 colors (No blink) / 16,384 colors (Blink)

Backlight

White LED (Not user replaceable. When replacement is required, contact your local distributor.)

Backlight service life

50,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)

Brightness control

16 Levels (Adjusted with touch panel or software)

Touch panel type

Resistive Film (analog)

Touch panel resolution

1,024 x 1,024

Touch panel lifetime

1,000,000 times or more

Language fonts

Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor. )

Character sizes

Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts

Font sizes

Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.*1

8 x 8 dots

100 char. x 75 rows

8 x 16 dots

100 char. x 37 rows

16 x 16 dots

50 char. x 37 rows

32 x 32 dots

25 char. x 18 rows

1Other font sizes can be set up with the Editor software.

Electrical specifications

Rated input voltage

24 Vdc

Input voltage limits

19.2 to 28.8 Vdc

Allowable voltage drop

10 ms or less

Power consumption

17 W or less

In-rush current

30 A or less

Noise immunity

Noise Voltage : 1,000 Vp-p
Pulse Duration : 1 µs
Rise Time : 1 ns
(via noise simulator)

Voltage endurance

1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)

Insulation resistance

500 Vdc, 10 MΩ or more (between power terminal and FG terminals)

Memory

Application memory

When using GP-Pro EX:
- Media: FLASH EPROM
- Screen Area: 32MB *Use the screen area when the user font area's capacity is exceeded - for example, when an image font or a picture font is used.
- User Font Area: 8MB
- Logic Program Area: 132KB (Equivalent to 15,000 steps) *Up to 60,000 steps can be converted in software. However, this reduces application memory capacity (for screen data) by 1 MB.
- Free Space: None

Removable System: No

Backup memory

When using GP-Pro EX:
- Screen Area: SRAM 320KB
- Variable Area: SRAM 64KB

Battery: Replaceable battery / Primary battery for clock data backup

Clock accuracy

±65 sec./month (deviation at room temperature and power is OFF)*2

2Depending on the operating temperature and age of unit, the clock can deviate from -380 to +90 sec./month. For systems where this level of deviation is a problem, the user should monitor and make adjustments when required.

Interface specifications

Serial (COM1)

Asynchronous Transmission: RS-232C, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, Connector: D-Sub 9 (plug)

Serial (COM2)

Asynchronous Transmission: RS-422 / 485, Data Length: 7 or 8 bits, Stop Bit: 1 or 2 bits, Parity: None, Even or Odd, Data Transmission Speed: 2,400 to 115,200 bps, 187,500 bps (MPI), Connector: D-Sub 9 pin (plug)

USB (Type A)

Conforms to USB 2.0 (Type A) x 1
Power supply voltage: 5 Vdc ±5 %
Output Current: 500 mA or less
Communication distance: 5 m [16.4 ft.] or less

USB (mini-B)

Conforms to USB 2.0 (mini-B) x 1, Communication Distance: 5 m [16.4 ft] or less

Ethernet

IEEE802.3i / IEEE802.3u, 10BASE-T / 100BASE-TX, Connector: Modular jack (RJ-45) x 1

SD card

SD Card Slot x 1

Structural specifications

Grounding

Functional grounding: Grounding resistance of 100 Ω, 2mm2 (AWG 14) or thicker wire, or your country's applicable standard. (Same for FG and SG terminals)

Cooling method

Natural air circulation

Structure

IP65f NEMA #250 TYPE 4X/13 (on the front panel when properly installed in an enclosure)*3

External dimensions

W315 x H241 x D56 mm [W12.4 x H9.49 x D2.20 in.]

Panel cut-out dimensions

W301.5 x H227.5 mm [W11.87 x H8.96 in.]
Panel thickness area: 1.6 to 5 mm [0.06 to 0.2 in.]*4

Weight

2.5 kg [5.5 lb] or less
