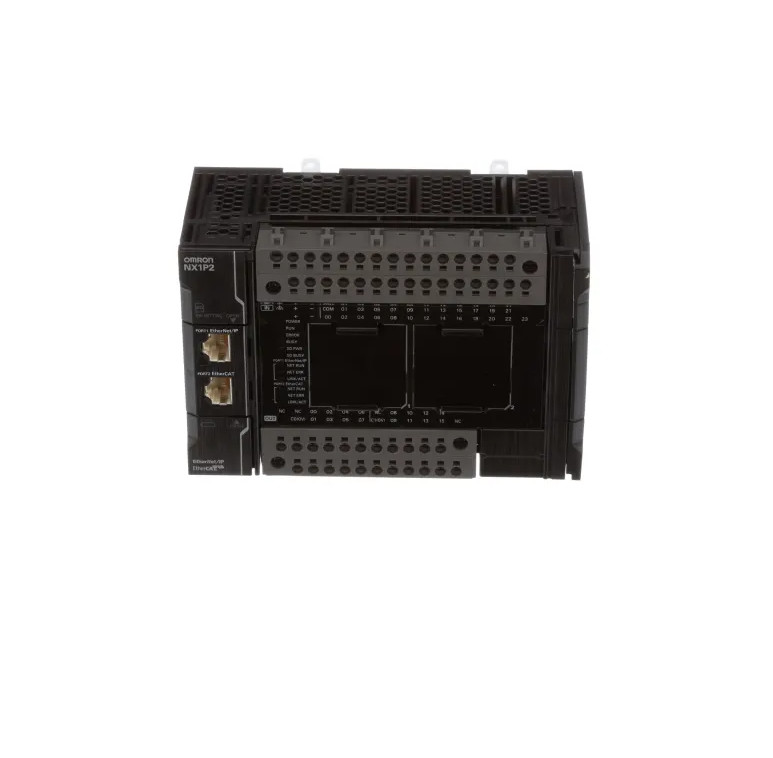

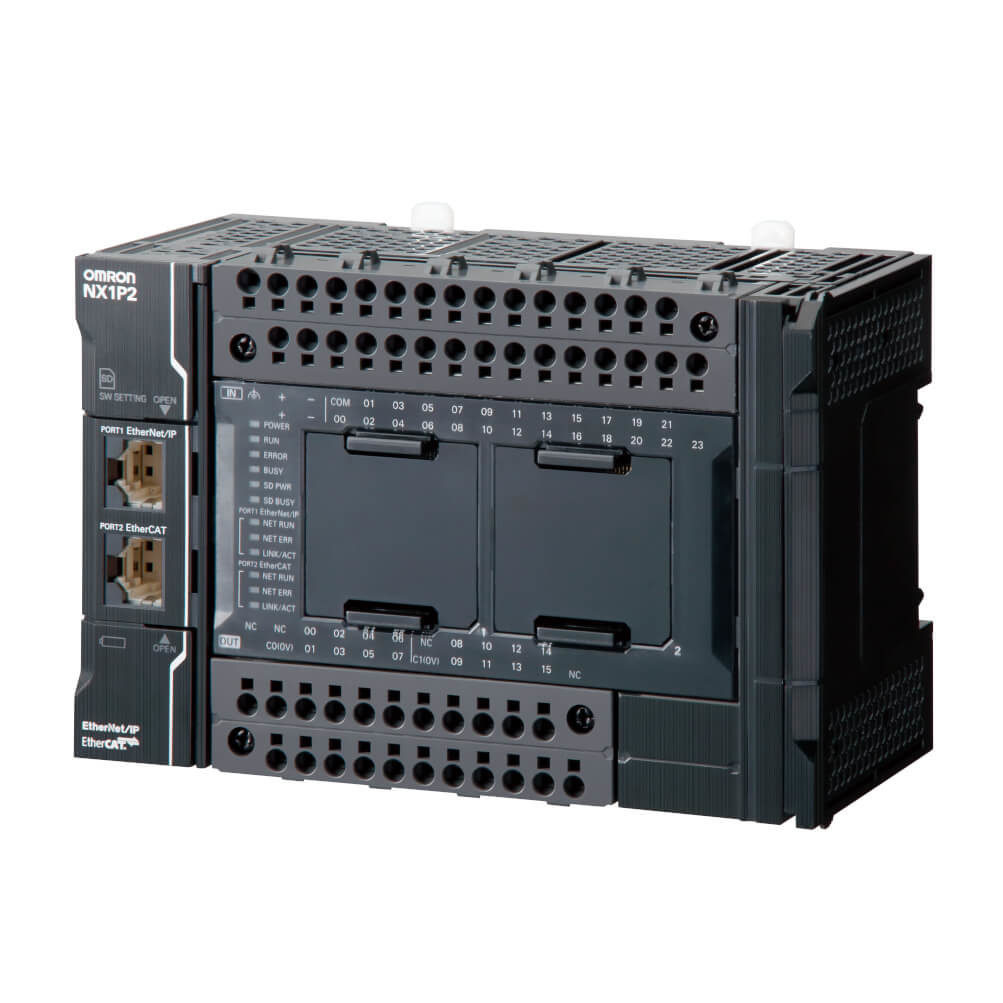

NX1P2-9024DT Omron PLC CONTROLLER 14/P 10 O/P 24VDC NX1P Series 18AC7106

NX1P2-9024DT Omron PLC CONTROLLER 14/P 10 O/P 24VDC Current Rating Product Range NX1P Series 18AC7106

Description
Descriptions of Omron NX1P2-9024DT
PLC CONTROLLER, 14/P, 10 O/P, 24VDC; Current Rating: -; Product Range: NX1P Series 18AC7106
No motion control axis (Single-axis position control axes only), 2 Axes, 24 Built-In I/O (14 Inputs, 10 Outputs), DC Inputs, NPN Transistor Outputs
Sysmac NX1P CPU with 24 Digital Transistor I/O (NPN) 1.5 MB memory EtherCAT (0 servo axes 4 PTP axes 16 EtherCAT nodes) EtherNet/IP and 1 serial option port

Specifications

Primary task cycle time	2 ms
Program memory	1.5 MB
Variables memory	2 MB
Max. number of synchronous axes	0
Max. number of PTP axes	4
Number of digital inputs	14
Input type	PNP/NPN
Number of digital outputs	10
Output type	NPN
Number of serial option boards	1
Max. number of expansion units	8
Max. number of remote I/O nodes	16
Communication port(s)	EtherCAT Master, EtherNet/IP, Ethernet TCP/IP
Number of Ethernet ports	2
Number of USB ports	0
Communication option(s)	Serial RS-232C, Serial RS-422, Serial RS-485
Real-time clock	✓
Supply voltage DC	20.4-28.8 V
Height	100 mm
Width	124 mm
Depth	71 mm
Weight	590 g

Accessories

GX-JC03	3-port EtherCAT Junction module, 24 VDC power supply
GX-JC06	6-port EtherCAT Junction module, 24 VDC power supply
GX-JC06-H	6-port EtherCAT Junction module, 24 VDC power supply, with node switches
HMC-SD492	4 GB SD memory card
NX-PF0730	NX I/O power feed unit, 5-24 V DC input, 8 terminals, 10A, screwless push-in connector, 12mm wide
NX1W-ADB21	Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1/4000 or 0 to 20 mA, resolution 1:2000
NX1W-CIF01	Sysmac NX1P RS-232C screwless (15 m max.) serial communication option board
NX1W-CIF11	Sysmac NX1P RS422/485 screwless (50 m max.) serial communication option board
NX1W-CIF12	Sysmac NX1P RS422/485 screwless (isolated 500 m max.) serial communication option board
NX1W-DAB21V	Sysmac NX1P Analog I/O screwless option board, 2 x analog outputs 0 to 10 V, resolution 1:4000
NX1W-MAB221	Sysmac NX1P Analog I/O screwless option board, 2 x analog inputs 0 to 10 V, resolution 1:4000 or 0 to 20 mA, resolution 1:2000, 2 x analog outputs 0 to 10 V, resolution 1:4000
SYSMAC-SE201L	Sysmac Studio license only, single user (requires SYSMAC-SE200D download or installation DVD, available separately)
W4S1-05D	5-port enhanced Ethernet switch
XS6W-6LSZH8SS100CM-Y	Ethernet patch cable, F/UTP, Cat.6A, LSZH (Yellow), 1 m

Spare parts

	CJ1W-BAT01	Battery for CJ1M PLCs
	NX-END02	Spare part - End plate for NX1P controller
