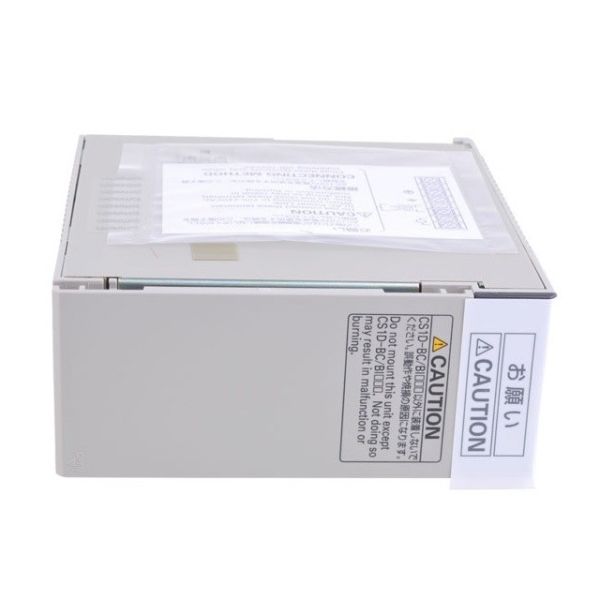

Item Power Supply Unit

Specifications

CS1D-PD024

CS1D-PD025

Power supply voltage

24 V DC

Operating voltage range

19.2 to 28.8 V DC

Power consumption

40 W max.

60 W max.

Inrush current

30 A max.

Power supply output capacity

5 V DC, 4.3 A (including the CPU Unit power supply)

26 V DC, 0.56 A

Total: 28 W

5 V DC, 5.3 A (including the CPU Unit power supply)

26 V DC, 1.3 A

Total: 40 W

Power supply output terminal

Not provided.

RUN output *1

Not provided.

Insulation resistance

20 MΩ min. (at 500 V DC) between DC external and GR terminals *2

Noise immunity

2 kV on power supply line (conforming to IEC61000-4-4)

Vibration resistance

10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s2 in X, Y, and Z directions for 80 minutes (Time coefficient: 8 minutes ´ coefficient factor 10 = total time 80 minutes)

(When mounted on a DIN Track: 2 to 55 Hz, acceleration of 2.9 m/s2 in X, Y, and Z directions for 20 minutes) (conforming to IEC60068-2-6)

Shock resistance

147 m/s2 3 times each in X, Y, and Z directions (conforming to IEC60068-2-27)

Ambient operating temperature

0 to 55°C

Ambient operating humidity

10% to 90% (with no condensation)

Atmosphere

No corrosive gases

Ambient storage temperature

-20 to 75°C (excluding battery)

Grounding

Less than 100 Ω

Enclosure

Mounted in a panel.

Weight

Each Rack: 6 kg max.

CPU Rack dimensions (mm)

CS1D-BC052 (5 slots, Duplex CPU System) and CS1D-BI082S (8 slots, Single CPU System): 505 ´ 132 ´ 123 mm (W ´ H ´ D) *2
