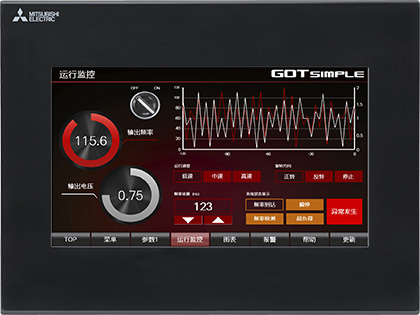

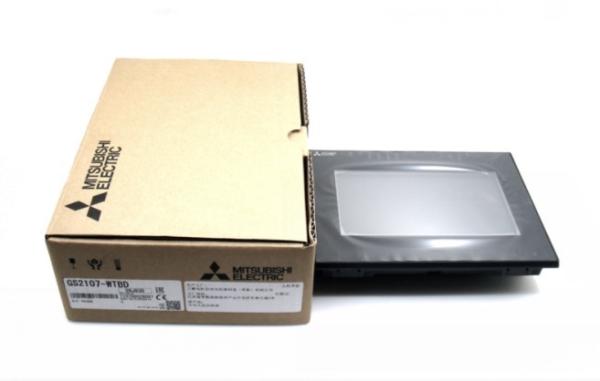

GS2107-WTBD-N |
GS21 model |
GOT SIMPLE |
GS21 |
TFT color LCD |
|
WVGA: 800 x 480 dots |
154 (W) x 85.9 (H) mm
(6.06 (W) x 3.38 (H) inch)
(Horizontal format) |
16-dot standard font: 50 characters x 30 lines (two-byte
characters)
12-dot standard font: 66 characters x 40 lines (two-byte
characters)
(Horizontal format) |
65536 colors |
32 levels |
LED (not replaceable) |
White |
Analog resistive film |
Minimum 2 x 2 dots (per key) |
Not available (Only 1 point can be touched.) |
1 million touches or more (operating force: 0.98 N or less) |
Black |
－ |
－ |
Flash memory (Internal) : 15 MB |
100000 times |
for storing project data, OS |
1 channel |
115200, 57600, 38400, 19200, 9600, 4800 bps |
D-sub 9-pin (male) |
1 channel |
115200, 57600, 38400, 19200, 9600, 4800 bps |
D-sub 9-pin (female) |
330 Ω, 110 Ω, OPEN (Selectable by the terminating resistor setting
switch.) |
－ |
－ |
－ |
－ |
－ |
－ |
－ |
1 channel |
100BASE-TX, 10BASE-T |
RJ-45 (modular jack) |
－ |
－ |
－ |
－ |
－ |
－ |
－ |
1 channel (rear face) |
Full-Speed 12 Mbps |
USB Mini-B |
1 channel, SDHC compliant (maximum 32 GB) |
－ |
－ |
－ |
－ |
Single tone (LONG/SHORT/OFF adjustable) |
－ |
Standard |
Front: IP65F |
206 (W) x 155 (H) x 50 (D) mm
(8.11 (W) x 6.11 (H) x 1.97 (D) inch) |
191 (W) x 137 (H) mm
(7.52 (W) x 5.40 (H) inch) |
0.9 kg |
0°C to 50 °C |
-20°C to 60 °C |
10% RH to 90% RH, non-condensing |
10% RH to 90% RH, non-condensing |
Conforms to IEC 61131-2 |
Half amplitude: 3.5 mm
Sweep count: 10 times in each X, Y, or Z direction
Acceleration: 9.8 m/s2
Sweep count: 10 times in each X, Y, or Z direction
|
Half amplitude: 1.75 mm
Acceleration: 4.9 m/s2
|
Conforms to IEC 61131-2 (147 m/s2 (15 G), 3 times in each X, Y, or Z direction) |
No greasy fumes, corrosive gas, flammable gas, excessive conductive
dust, and direct sunlight (as well as at storage) |
2000 m or less |
Inside control panel |
II or less |
2 or less |
Self-cooling |
Grounding with a ground resistance of 100 Ω or less by using a
ground cable that has a cross-sectional area of 2 mm2 or more. If impossible, connect the ground cable to the control
panel. |
If the ambient temperature exceeds 40°C, the absolute humidity must
not exceed 90% RH at 40°C. |
If the ambient temperature exceeds 40°C, the absolute humidity must
not exceed 90% RH at 40°C. |
Do not use or store the GOT under a pressure higher than the
atmospheric pressure at altitude 0 m. Doing so may cause a
malfunction. Air purging by applying pressure to the control panel
may create clearance between the surface sheet and the touch panel.
This may cause the touch panel to be not sensitive enough or the
sheet to come off. |
This indicates the section of the power supply to which the
equipment is assumed to be connected between the public electrical
power distribution network and the machinery within the premises.
Category II applies to equipment that is supplied with power from
fixed facilities. The withstand surge voltage for the equipment
with the rated voltage up to 300 V is 2500 V. |
This indicates the occurrence rate of conductive material in an
environment where a device is used. Pollution degree 2 indicates an
environment where only non-conductive pollution occurs normally and
a temporary conductivity caused by condensation shall be expected
depending on the conditions. |
24 V DC (+10%, -15%), ripple voltage 200 mV or less |
－ |
－ |
6.5W (271 mA / 24 V) or less |
3.8W (158 mA / 24 V) or less |
17 A or less
(6 ms, 25 °C, at the maximum load) |
Within 5 ms |
Conforms to IEC61000-4-4, 2kV (power supply line) |
350 V AC for 1 minute (across power supply terminals and earth) |
500 V DC across power terminals and earth, 10 MΩ or more by an
insulation resistance tester |
0.75 mm2 to 2 mm2 |
Solderless terminal for M3 screw RAV1.25-3, V2-S3.3, V2-N3A,
FV2-N3A |
0.5 N・m to 0.8 N・m |
