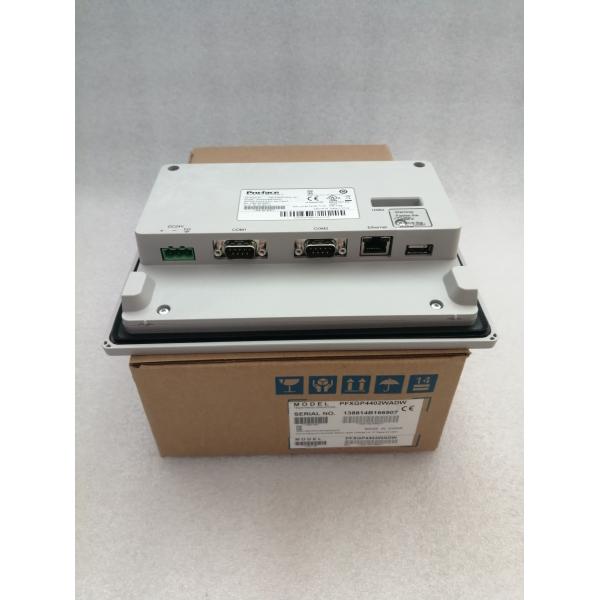

16 Levels Proface HMI 12.1 Inch PFXGP4402WADW Touch Panel Display

Ask Lasest Price
Brand Name :	Proface
Model Number :	PFXGP4402WADW
Supply Ability :	100pieces per week
Price :	$129.00- $210/Pieces
Payment Terms :	T/T, western union
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

16 Levels Proface HMI 12.1 Inch PFXGP4402WADW Touch Panel Display

PFXGP4402WADW Proface HMI Touch Screen Display Favorable Price

Functional Specifications

Display Type	TFT Color LCD
Display Size	12.1"
Resolution	800 x 600 pixels (SVGA)
Effective Display Area	W246.0 x H184.5 mm [W9.69 x H7.26 in.]
Display Colors	65,536 Colors (No blink)/16,384 Colors (Blink)
Backlight	White LED (User nonreplaceable parts. When replacement is required, contact your local distributor.)
Brightness Control	16 Levels (Adjusted with the touch panel or the software)
Backlight Service Life	50,000 hrs. or more (continuous operation at 25°C [77 °F] before backlight brightness decreases to 50%)
Language Fonts	Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters) ANK: 158 (Korean fonts, Simplified Chinese and Traditional Chinese fonts are downloadable.)
Character Sizes	Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts, Stroke font: 6 to 127 pixel fonts, Image font: 8 to 72 pixel fonts
Font Sizes	Standard font: Width can be expanded up to 8 times. Height can be expanded up to 8 times.
8 x 16 dots	100 char. x 37 rows
16 x 16 dots	50 char. x 37 rows
32 x 32 dots	25 char. x 18 rows
8 x 8 dots	100 char. x 75 rows
Program Area	FLASH EPROM 132 KB (Equivalent to 15,000 steps)^*1
Variable Area	SRAM 64 KB (Replaceable Lithium battery for backup memory)
Application Memory	FLASH EPROM 32 MB (including a logic program area)
Data Backup	SRAM 320 KB (Replaceable Lithium battery for backup memory)
Clock Accuracy	±65 sec/month (deviation at room temperature and power is OFF)^*2
Touch Panel Type	Resistive Film (matrix)
Touch Panel Resolution	40 x 30 keys/screen
Touch Panel Service Life	1,000,000 times or more
Serial (COM1)	RS-232C Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even, Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, Connector: D-Sub9 (plug)
Serial (COM2)	RS-422/485 Asynchronous Transmission Data Length: 7 or 8 bits, Parity: none, Odd or Even Stop Bit: 1 or 2 bits, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5kbps (MPI) Connector: D-Sub9 (plug)
Ethernet (LAN)	IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX Connector: Modular jack (RJ-45) x 1
USB (TYPE-A)	Conforms to USB2.0 (TYPE-A) x 1, Power Supply Voltage: DC 5 V ±5 %, Output Current: 500 mA or less, Communication Distance: 5 m [16.4ft.] or less
USB (mini-B)	Conforms to USB2.0 (mini-B) x 1, Communication Distance: 5 m [16.4ft.] or less
SD Card	SD Card Slot x 1
