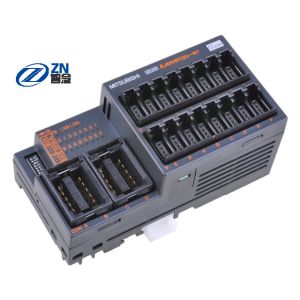

Industrial Mitsubishi PLC Controller Programmable AJ65VBTCE2-16T

Ask Lasest Price
Brand Name :	Mistubishi
Model Number :	AJ65VBTCE2-16T, AJ65VBTCE2-16T
Supply Ability :	10pc/per week
Price :	$50-$500
Payment Terms :	T/T, western union
Delivery Time :	Within 3 Working Days
MOQ :	1 Set

Add to Cart

Product Details
Company Profile

Industrial Mitsubishi PLC Controller Programmable AJ65VBTCE2-16T

Industrial Control Mistubishi AJ65VBTCE2-16T PLC Controller Programmable

16 output points: 12/24 V DC (0.1 A), transistor output (sink type), 2-wire type
Output points: 16 points.
Voltage: DC12/24V.
OFF leakage current: 0.1mA.
Output type: transistor output (type sink).
Response time: 2ms.
8 points / a common end.
20 point terminal station.
With heat protection.
With short circuit protection.
With the surge absorber.

Number of Outputs	16	Representative Standard	CE / UL
Leakage current when OFF(mA)	0.1 mA or Less	Output answer time	2ms
Terminal shape	Screw/ Two-Piece Terminal Block	Maximum Switching Voltage(V)	DC12/24V
Thermal Protection/ Short Circuit Protection/ Protective Function/ Fuse/ Surge Protector	NA	Type of unit	Transistor Output (Sink)
External connection	2-Wire	I/O unit power supply current	80 mA or Less
Rated load current (rated opening/closing current)	0.5A	-	-

Item		Description
Number of output points		16 points
Isolation method		Photocoupler
Rated load voltage		12/24 VDC (Ripple ration: within 5%)
Operating load voltage range		10.2 to 26.4 VDC
Max load current		0.1A/point, 1.6A/ common
Max inrush current		0.7A, 10ms or less
Leakage current at OFF		0.1mA or lower
Max voltage drop at ON		0.1VDC or lower(TYP) 0.1A 0.2VDC or lower(MAX) 0.1A
Output type		Sink type
Protection function		Overload protection, overvoltage protection, overheat protection
Response time	OFF to ON	1ms or less
	ON to OFF	1ms or less (resistive load)
External power supply for output part	Voltage	12/24VDC (ripple ratio: within 5%) (allowable voltage range 10.2 to 26.4VDC)
	Current	10mA or lower(at 24VDC and all points ON), excluding external load current
Surge suppressor		Zener diode
