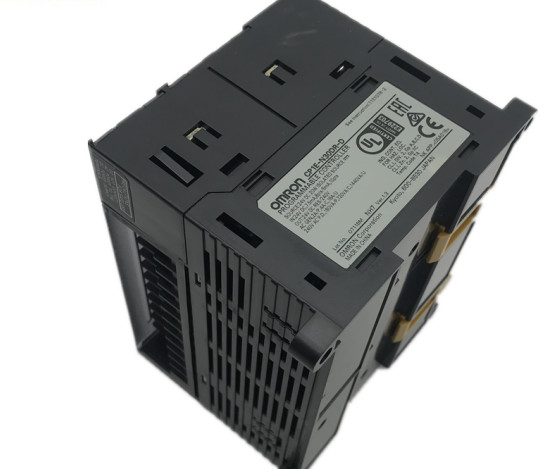

CP1E-N30DR-D Omron PLC CP1E Controller Intelligent PLC Relay Module

Ask Lasest Price
Brand Name :	Omron
Model Number :	CP1E-N30DR-D
Price :	$50-500
Supply Ability :	10pc/per week
Payment Terms :	T/T, western union
MOQ :	1 PC

Add to Cart

Product Details
Company Profile

CP1E-N30DR-D Omron PLC CP1E Controller Intelligent PLC Relay Module

OMRON CP1E-N30DR-D Authentic Original Intelligent PLC Controller in stock

CP1E-N30DR-D Omron PLC CP1E Controller Intelligent PLC Relay Module

Overview

Omron CP1E Series – The Economy Class Micro PLC:

Omron’s CP1E series offers all functionality you need to control relatively simple applications, including outstanding positioning capability. All CP1E CPUs offer high-speed USB for quick programming. The “Easy Input Editor" software feature allows faster programming by using an intuitive ladder editor to create an organized application program. The CP1E series comes in two different types: CP1E-E is the most economical, while the CP1E-N has a built-in real-time clock, motion control capabilities, and a serial port to connect an HMI, barcode reader, or other serial device. Several optional units are available to increase the functionality. As the CP1E series shares the same architecture as the CP1L, CP1H, CJ, and CS series, programs are compatible for memory allocations and instructions.

Features:

Lineup including CPU Units with built-in three ports: USB, RS-232C, RS-485
The depth of CPU Units with RS-232C connectors is reduced by 20 mm. (N30/40/60S(1))
Easy connection with computers using commercially available USB cables
With E30/40/60(S), N30/40/60(S@) or NA20 CPU Units, Add I/O, Analog I/O or Temperature Inputs by Connecting Expansion Units or Expansion I/O Units
Input interrupts
Complete High-speed Counter Functionality
Versatile pulse control for Transistor Output for N14/20/30/40/60(S@) or NA20 CPU Units
PWM Outputs for Transistor Output for N14/20/30/40/60(S@) or NA20 CPU Units
Mounting Serial Option Boards, Ethernet Option Board and Analog Option Board to N30/40/60 or NA20 CPU Units
Built-in analog I/O, two inputs and one output, for NA-type CPU Unit

Manufacturer	OMRON
Type of module	PLC programmable controller
Number of outputs	12
Number of inputs	18
Kind of output 1	relay
Kind of input 1	digital
The programming method	PC
Mounting	DIN

Supply voltage

24V DC

Additional information

Gross weight: 300 g
Manufacturer part number: CP1E-N30DR-D
