PFXGP4401TAD Pro-Face Touch Screen HMI TFT Color LCD

Ask Lasest Price
Brand Name :	Proface
Model Number :	PFXGP4401TAD
Price :	USD100-5000/pc
Payment Terms :	T/T, western union
Supply Ability :	10pc/per week
Delivery Time :	3-5working days
MOQ :	1 PC

Add to Cart

Product Details
Company Profile

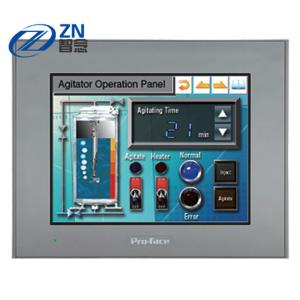

PFXGP4401TAD Pro-Face Touch Screen HMI TFT Color LCD

PFXGP4401TAD Pro-face Touch Screen HMI TFT Color LCD

Display specifications:
Display type : TFT Color LCD
Display size : 7.5"
Resolution : 640 x 480 pixels (VGA)
Effective display area : W153.7 x H115.8 mm [W6.05 x H4.56 in.]
Display colors : 65,536 colors (No blink) / 16,384 colors (Blink)
Backlight : White LED
Backlight service life: 50,000 hrs. or more (each in continuous operation at 25 °C [77 °F]
before backlight brightness decreases to 50%)
Brightness control: 16 Levels (Adjusted with touch panel or software)
Touch panel type: Resistive Film (analog)
Touch panel resolution: 1,024 x 1,024
Touch panel lifetime : 1,000,000 times or more

Electrical specification

Rated input voltage	24 Vdc
Input voltage limits	19.2 to 28.8 Vdc
Allowable voltage drop	5 ms or less
Power consumption	3.4 W or less
In-rush current	30 A or less
Noise immunity	Noise Voltage : 1,000 Vp-p Pulse Duration : 1 µs Rise Time : 1 ns (via noise simulator)



Voltage endurance	1,000 Vac, 20 mA for 1 minute (between power terminal and FG terminals)
Insulation resistance	500 Vdc, 10 MΩ or more (between power terminal and FG terminals)
